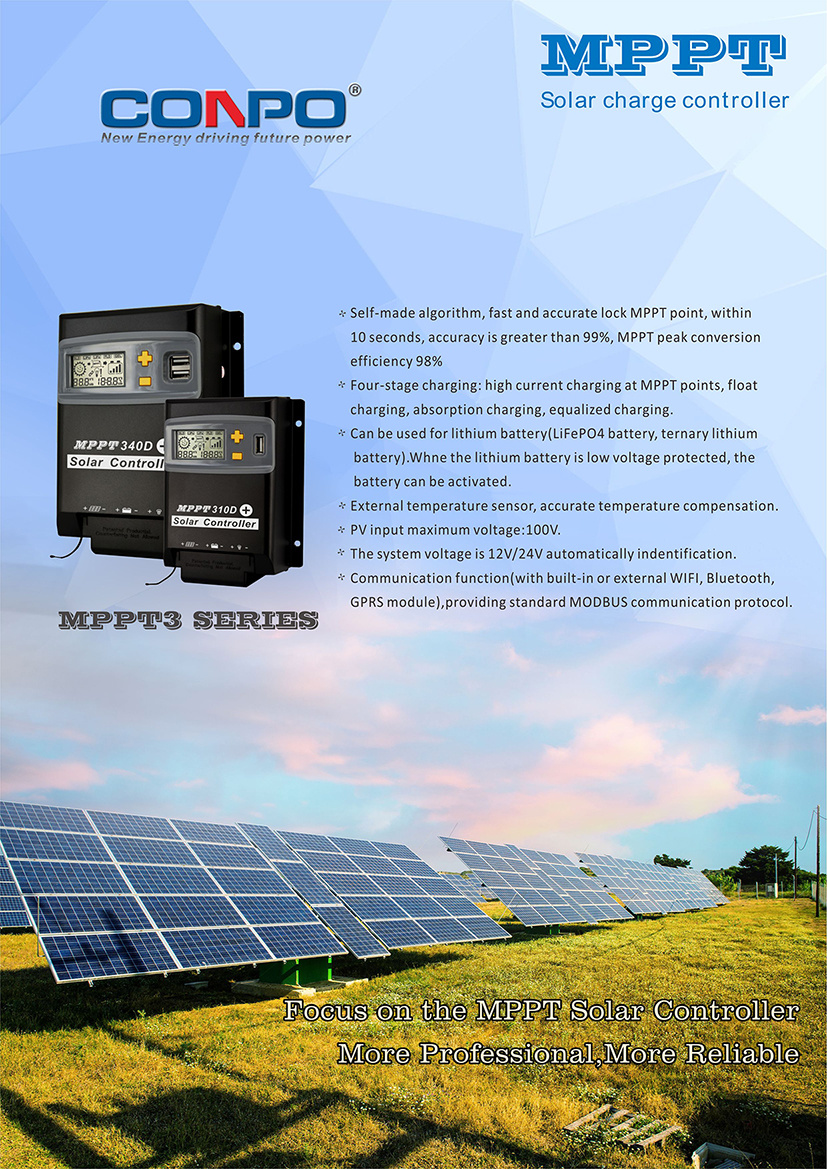

MPPT Solar Charge Controller MPPT3 series 10A/20A/30A/40A 12V/24V auto., PV max. volt. 100VDC

1. Self-made algorithm, fast and accurate lock MPPT point, within 10seconds, accuracy is greater than 99%, MPPT peak conversion efficiency 98%. 2. Four-stage charging: high current charge at MPPT points, float charging, absorption charging, equalized charging. 3. Can be used for lithium battery(LifePO4 battery, ternary lithium battery). While the lithium battery is low voltage protected, the battery can be activated. 4. External temperature sensor, accurate temperature compensation. 5. PV input maximum voltage: 100V 6. The system voltage is 12V/24V automatically indentification. 7. Communication function(with built-in or external WIFI, Bluetooth, GPRS module), providing standard MODBUS communication protocol.
Retail price
0.0
Yuan
Market price
0.0
Yuan
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
1
Product description









Keyword:
MPPT Solar Charge Controller
MPPT
Solar Controller
PV MPPT
Solar System
Solar Panel
Solar Kits
We could not find any corresponding parameters, please add them to the properties table
